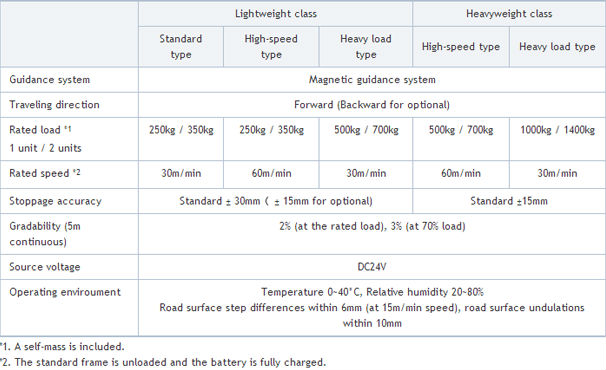

Light-duty class unit:

Size: W353 x H228 x L355 mm

Min. Ground Height: 19 mm

Self-Mass: 25 kg



Control Unit:

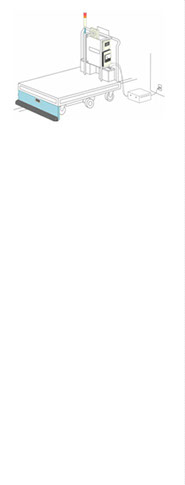

This is a core section of the Meiden AGV kit.  It contains a computer and a control unit.

Size: W350 x H120 X L400 mm

Self-Mass: 10 kg

Installing Direction: Longitudinal flat installation



Operator Switches:

The POWER, START and EMERGENCY STOP switches are installed.



Wheel Lifter:

This is a lever to raise or lower the driver block. When the driver block is raised, the vehicle can be moved manually.





Market Sensor:

This is a command sensor to read out the command marker.

Battery (24V)

Used as the AGV power supply.

25AH, 35AH, 65AH and 100AH ar available



Battery Charger:

This is a battery charger

AC 100V and AC 200V versions are available



Auto-Charger (back type):

Battery cells are charged while the AGV is in standby mode through the connections between the battery charger terminal and the charger





Magnetic Tape, marker:

These are the magnetic tapes for guidance and markers.





Auto-Charger (side type):

Since it can touch the side terminal, automated charging is possible without any back-traveling function.

Tape Bumper

An emergency stop takes place when the tape bumper touches an obstacle. Dead zones are provided to both ends.



Battery Voltmeter:

The battery voltage is measured and displayed



Operational Console Type A:

This is used for multi-spot stoppage with command markers. The AGV can stop at a maximum of 8 stations. A maximum of 7 branches can be set up. An error code is indicated in case of an error



Operational Console Type 2B:

This is used for relative address type multi-spot stoppage. The AGV can stop at a maximum of 50 stations and a maximum of 30 branches can be set up.  An error code is indicated in case of an error.



Laminate Pilot Lamp:

Lit during automatic traveling, an emergency stop a stop at a station and others. An independently controllable buzzer is incorporated (Up to three colors to choose from)



Manual Operation Pendant:

This is a wired remote control. It is useful when moving a heavy class vehicle outside the tapes



Pipe Bumper:

An emergency stop takes place when the tape bumper touches an obstacle.  This is a bumper for pipe vehicle.



Obstacle Sensor:

Obstacles are sensed by infrared rays.  When approaching to the obstacle, the vehicle reduces speed and stops.



Optical Communication Equipment:

This is used when an instruction of AGV operation is given from the ground level (an onboard setter may be required)



Obstacle Sensor (Scanner Type):

The detection areas can be set up with a personal computer. For each detection area, a detection distance of 2-stage output can be set up.



Running Melody Unit:

A melody is broadcast during traveling or cargo transfer.  21 melodies and 11 types of buzzer sounds are available.



Battery Voltmeter (Digital Type):

The battery voltage is measured and digitally displayed (not available for auto-chargers)



Wireless Controller + Wireless LAN Unit:

Functional details are available in product literature.
